MaxxMacro 239645 MXRuler WEDM 645mm

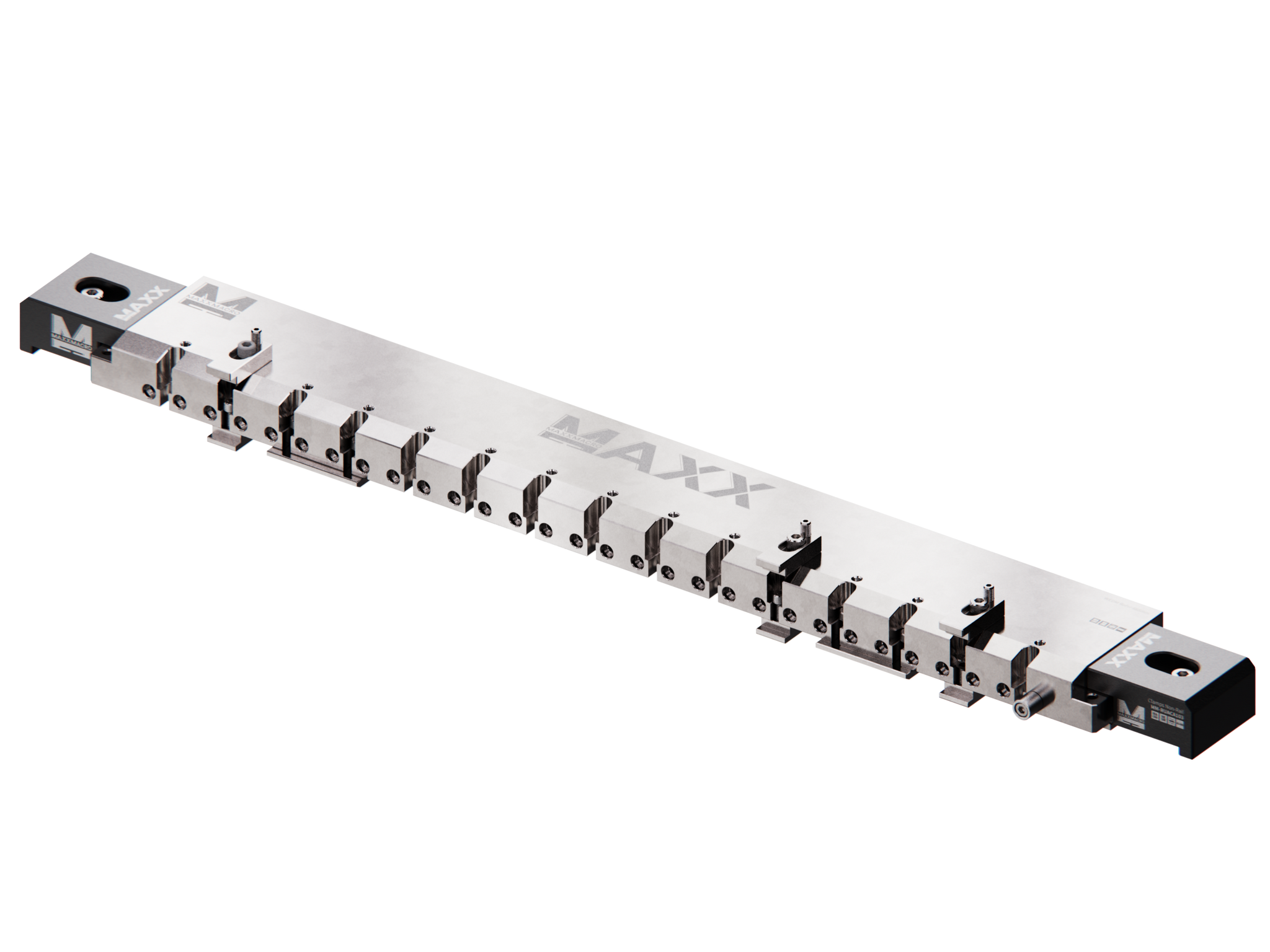

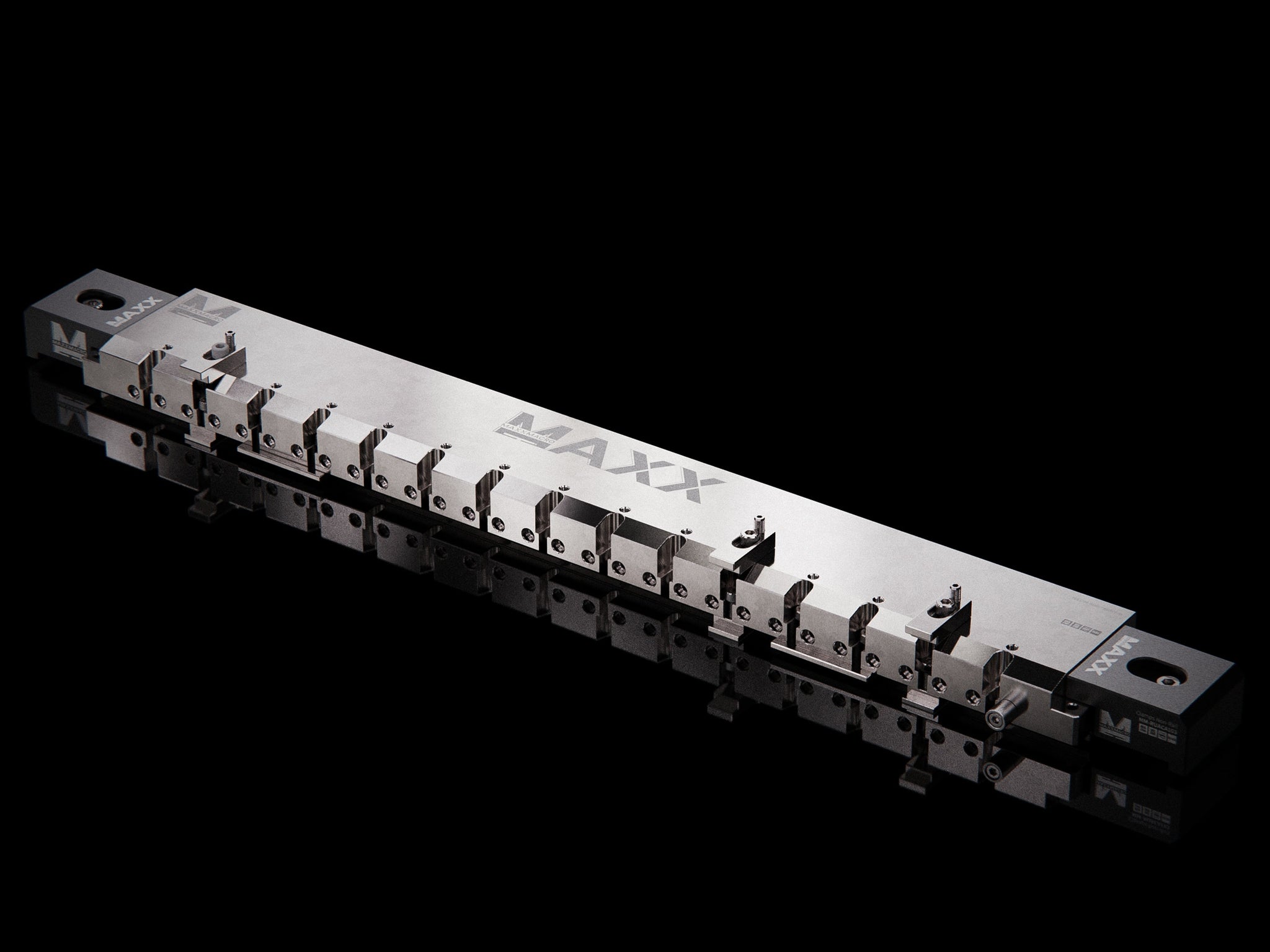

MaxxMacro 239645 MXRuler Ruler 645mm comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. The rulers are available in various lengths (-XXX), to match different machines. The cross-section is matched to the length to ensure optimal stability.

MaxxDesign Exclusive Features:

• Enhanced rigidity with upgraded dimensions: 86 mm wide (up from 60 mm) and 36 mm high (up from 30 mm)
• Compatible with any reference element (requires MaxxMacro A2392 MXRuler WEDM Sliding 86mm Clamps)

Product Information:

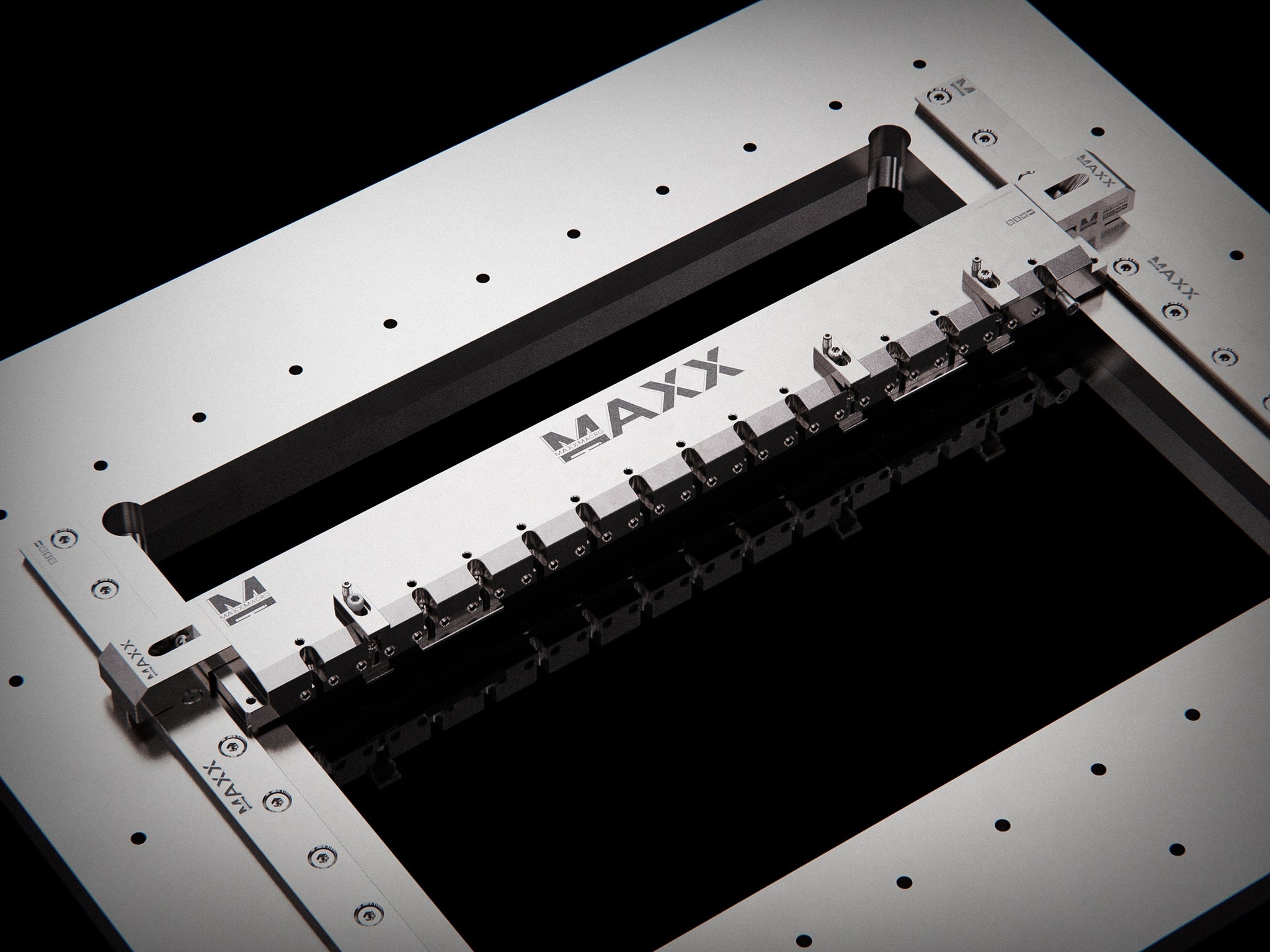

The MaxxMacro MXRuler is the most versatile setup for your Wire EDM machine. It is available in various lengths (-XXX) to match different machine sizes, with each length paired with a specifically designed cross-section to ensure optimal stability and performance. The MXRuler is compatible with a wide range of accessories, allowing for quick and easy mounting of workpieces of various sizes and shapes.

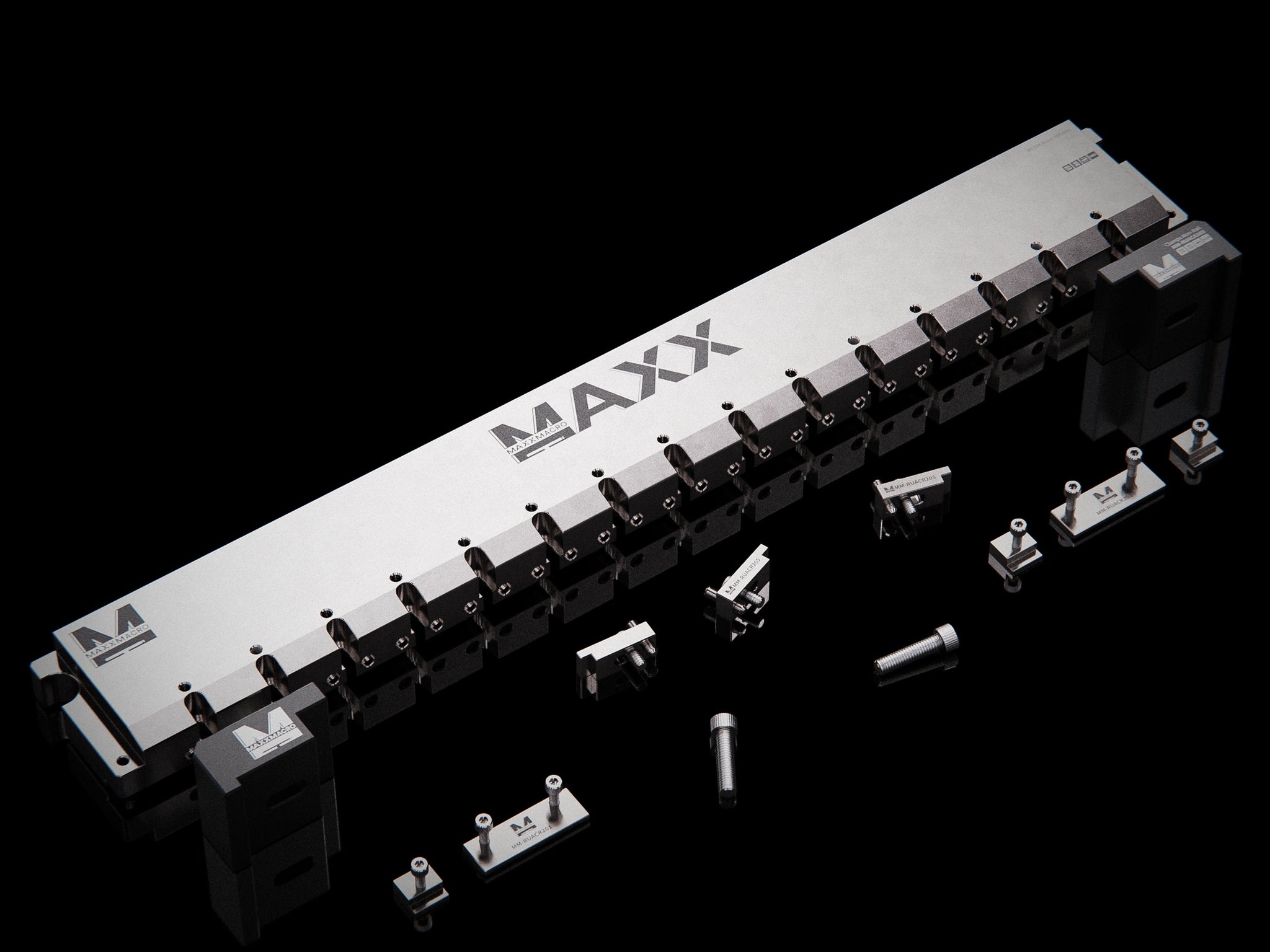

The MaxxMacro MXRuler includes the following items:

• 1 MaxxMacro MXRuler
• 1 MaxxMacro Ruler Eccentric Endstop (MM-RUACR214)
• 2 pieces of MaxxMacro MXRuler A239 WEDM Clamps non-rail (MM-RUACA103)
• 3 pieces of MaxxMacro MXRuler 23922 WEDM Stepped Support Tab (MM-RUACR203)
• 2 pieces of MaxxMacro MXRuler 23925 WEDM Standard 60mm Support Tab (MM-RUACR201)
• 3 pieces of MaxxMacro MXRuler 239241 WEDM Basic Toe Clamps (MM-RUACR205)

Machine Compatibility

Fits the following machines and more. Some machine applications may not be referenced below. Please contact us if you have any doubts.

Horizontal setup:

• Accutex AU 600
• Fanuc alpha C600iA

• Fanuc alpha C600iB

• Fanuc alpha C600iC

• Fanuc alpha 1iD

• Fanuc alpha 1iDP

• Fanuc alpha 1iE

• Mitsubishi MP2400

• Mitsubishi MV2400R / R Z+

• Mitsubishi MV2400S

• Mitsubishi MV2400S Z+

• Mitsubishi BA24

• Mitsubishi NA24

• Mitsubishi NA2400

• Mitsubishi NA2400P

• Mitsubishi PX05

• Sodick AL600G

• Sodick ALC600G

• Sodick ALN600G

• Sodick ALN600Q

• Sodick VL600Q

• Sodick AG600L

• Sodick AQ600L
• Sodick AQ600

• Sodick SL600G

• Sodick SL600P

• Sodick SL600Q

• Sodick SLC600G

• ONA AD35


Vertical setup:

• Fanuc alpha C800iB

• Mitsubishi MV4800R

• Mitsubishi MV4800S
