MaxxMacro 70 Pneumatic Chuck 600863 Machine-Adapted

$4,328.00

Maxx Tooling
MaxxMacro 70 Pneumatic Chuck 600863 Machine-Adapted comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3...
SKU: MM-PZ70S000Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Chucks Manual and Pneumatic, MaxxMacro® Chucks Pneumatic, MaxxMacro® Electrode Holders, MaxxMacro® MaxxMagnum® Performance WorkHolding, Sinker EDM Tooling Tags: 3R-600.86-30,70,Chuck,Chucking,EDM,MaxxMacro,Milling,MX-600863,Pneumatic,Spindle,Stainless,System 3R,System 3R Chuck,
Description

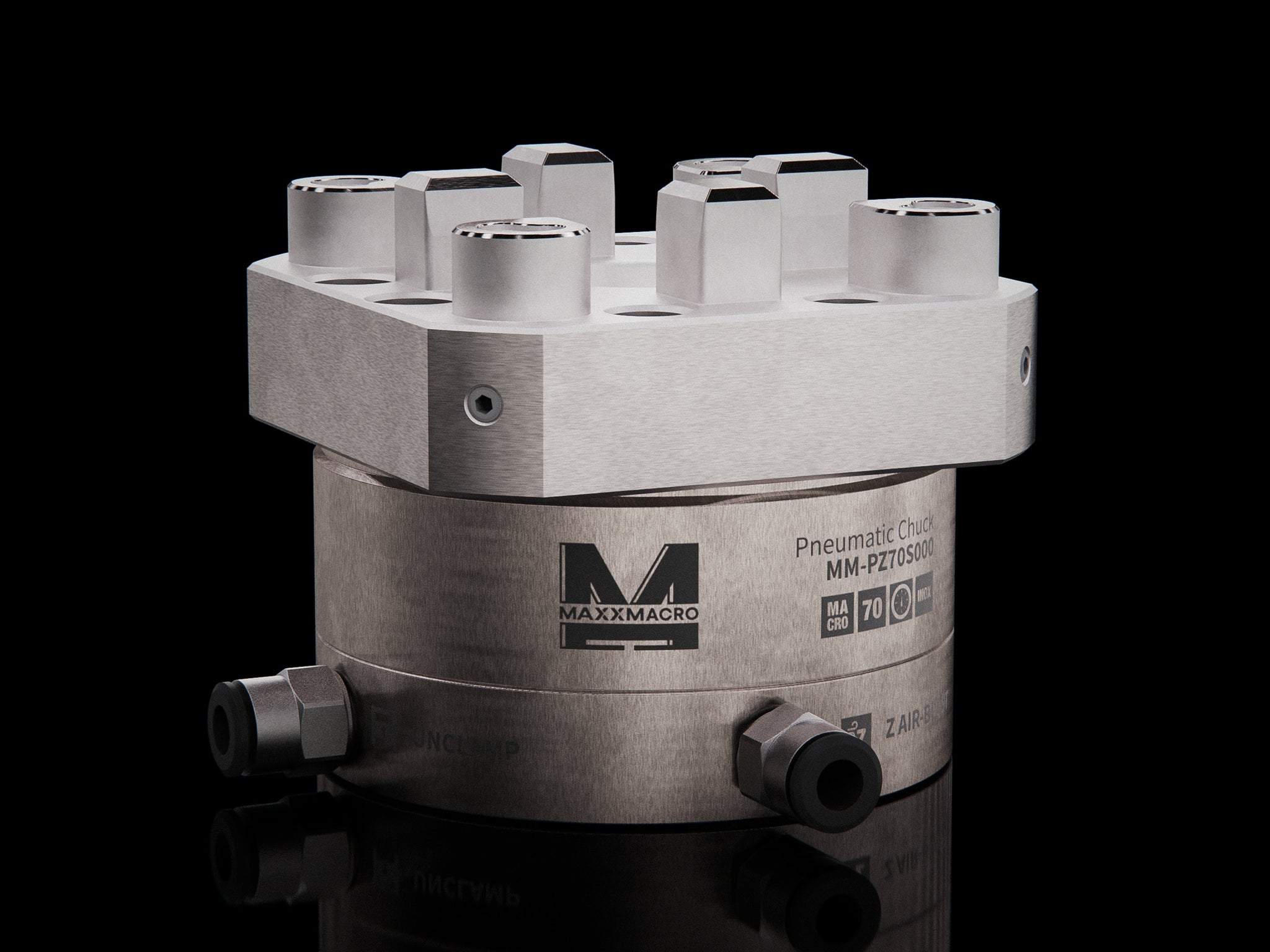

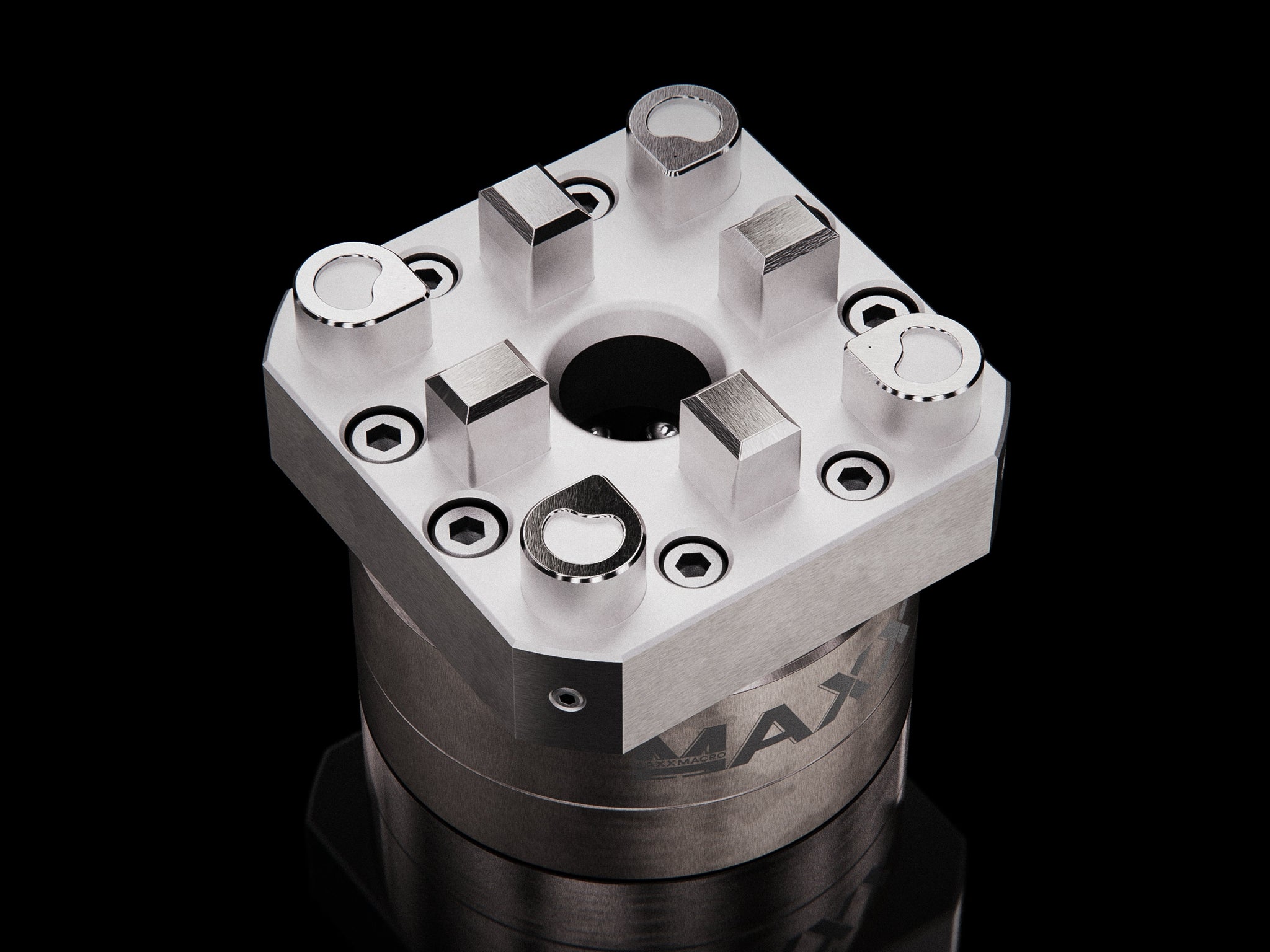

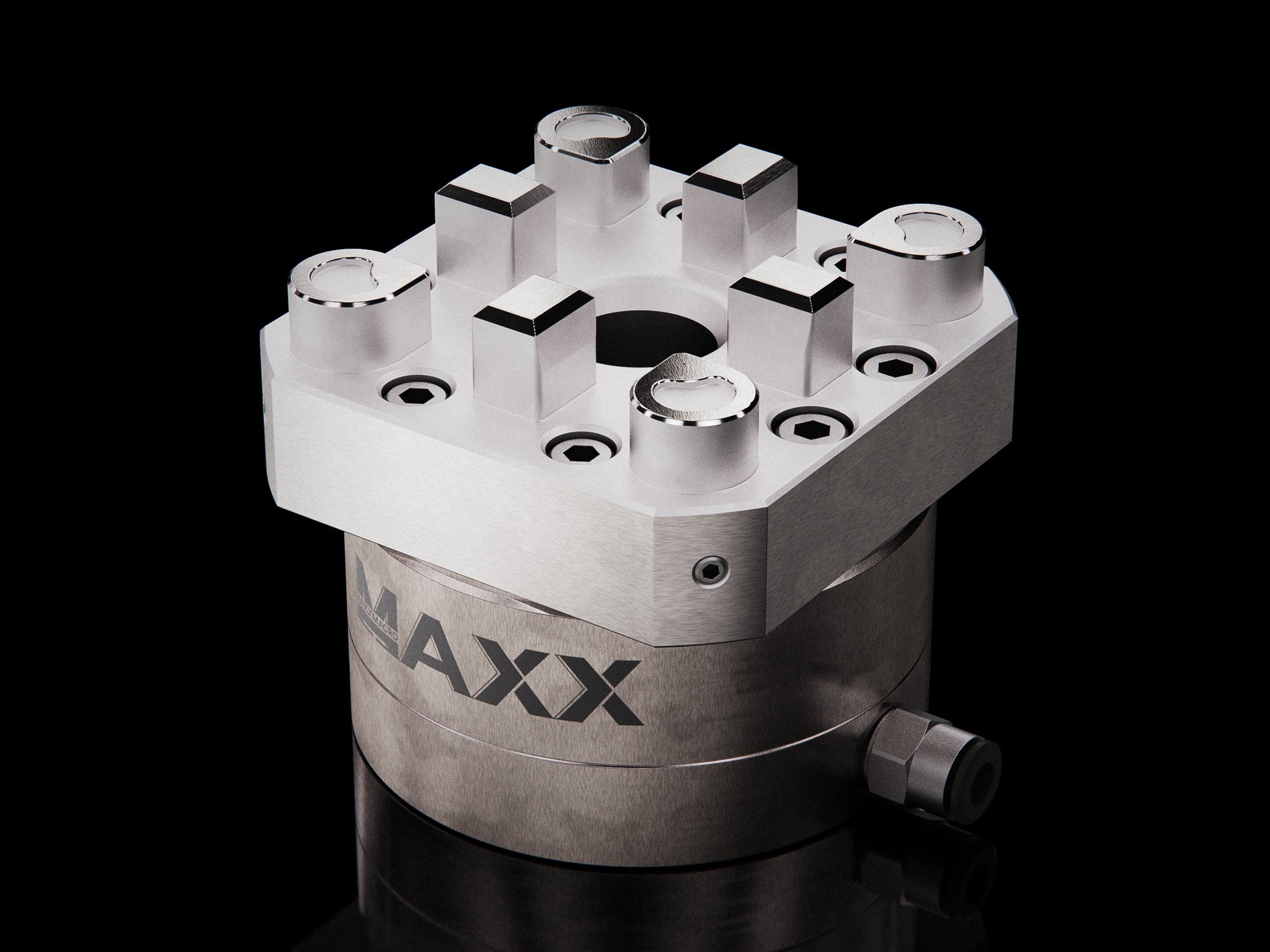

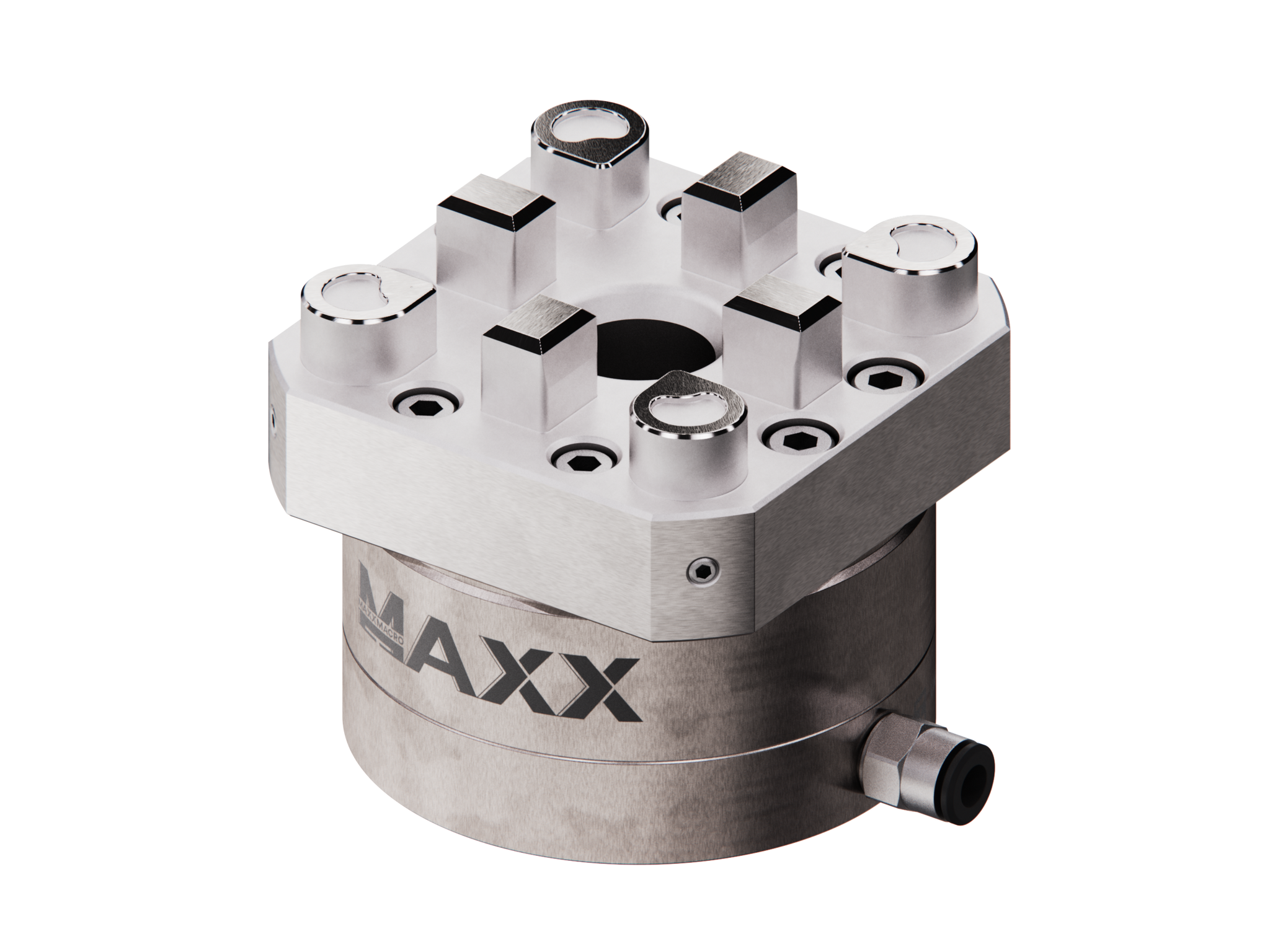

MaxxMacro 70 Pneumatic Chuck 600863 Machine-Adapted comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Pneumatic chuck for permanent mounting in the machine spindle.

MaxxDesign Exclusive Features:

  • High quality materials.
  • Side pneumatic ports.

Product Information:

MaxxMacro 70 Pneumatic Chuck 600863 Machine-Adapted is 100% cross compatible with System 3R 3R-600.86-30 Pneumatic chuck. Available also in WEDM version.

Product Specifics

  • Clamping Type: Pneumatic (6 bar)
  • Clamping Force: 6 kN
  • Drawbar/Spigot required: MM-DRWBR201

Product Details

  Product Name MaxxMacro 70 Pneumatic Chuck 600863 Machine-Adapted
  SKU [Old SKU] MM-PZ70S000 [MX-600863]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible [3R-600.86-30, 3R-600.86-3]
  System Repeatability 0.002mm
  Weight 2.05 kg | 4.52 lb
