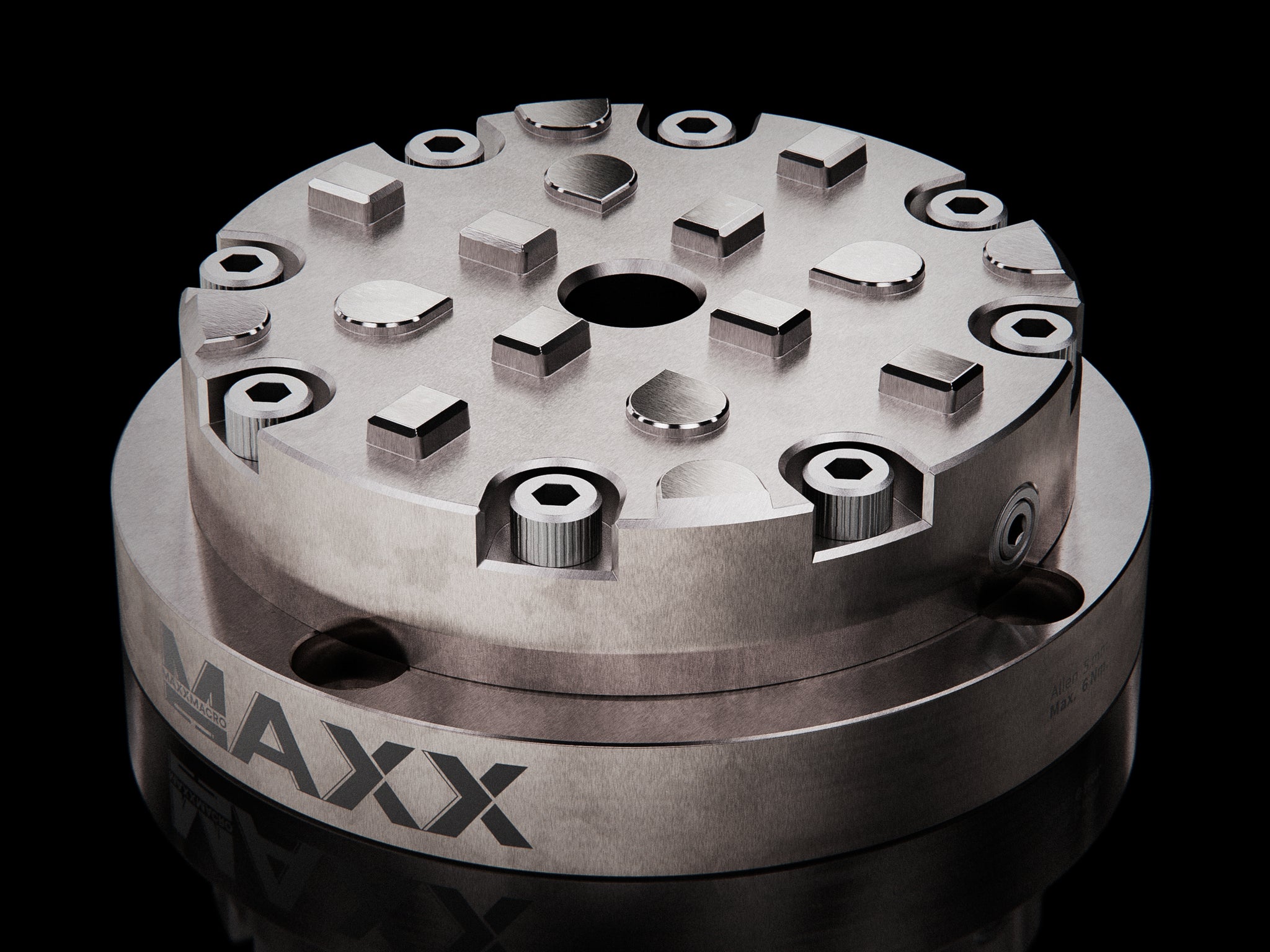

MaxxMagnum (System 3R) Manual Chuck Low Profile 68024V Table Haas TRT160

MaxxMagnum Manual Chuck Low Profile 68024V Table Haas TRT160

$3,419.00

Maxx Tooling
MaxxMagnum Manual Chuck Low Profile 68024V Table Haas TRT160 comes fully assembled and ready to use. This product is 100% cross-compatible with the...
SKU: MM-MGMPS001-TRT160Categories: All MaxxMacro® Products, MaxxMacro® Chucks Manual, MaxxMacro® Chucks Manual and Pneumatic, MaxxMacro® MaxxMagnum® Performance WorkHolding, MaxxMagnum® Chucks, MaxxMagnum® Reference Elements, Pallets, Chucks and Vises, System 3R Magnum Tags: 3R-680.24-S,3R-680.24-V,3R-680.24RS,3R-90809.02,Chuck,Chucking,Haas TRT160,Manual,MaxxMagnum,Milling,Mounting,MX-68024V-TRT160,Stainless,System 3R,System 3R Chuck,
Description

MaxxMagnum Manual Chuck Low Profile 68024V Table Haas TRT160 comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system.

MaxxDesign Exclusive Features:

  • High quality materials.
  • 100% cross-compatible with OEM system

Product Information:

MaxxMagnum Chuck 68024V Low Profile Manual Table Chuck Haas TRT160 is 100% cross compatible with System 3R Macro Magnum Chucks and Magnum products.

The MaxxMagnum HP Low Profile Stainless Manual Chuck provides the best balance of durability , accuracy and design.

Adapter plate for the Hole Platter of HAAS TR160 (2022).

  • Repeatability: 0.002 mm (0.00008“)
  • Does not include sealing ring, we offer it as s spare item.

Chuck Information

  • Clamping Type: Manual with Allen
  • Maxx torque manual chuck – MaxxMacro-pallet 4 Nm
  • Maxx torque manual chuck – MaxxMagnum-pallet 10 Nm
  • Mounting Bores: See print
  • Drawbar Required: MM-DRWBR101 (MX-STDR3R-1)
  • Force Power: 14000N

Product Details:

Product Name MaxxMagnum Manual Chuck Low Profile 68024V Table Haas TRT160
SKU MM-MGMPS001-TRT160 (MX-68024V-TRT160)
Pallet Included See print
System MaxxMacro (System 3R 100% Cross-Compatible)
Repeatability 0.002mm
Material See above
Cross-Compatible 3R-680.24-S, 3R-680.24RS, 3R-90809.02, 3R-680.24-V
Dimensions -
Weight -
