MaxxMacro 54 Multi 3 QuickChuck 60023 Precision Rail

$4,768.00

Maxx Tooling
MaxxMacro 54 Multi 3 QuickChuck Chuck Precision Rail comes fully assembled and ready to use. This product is 100% cross-compatible with the System ...
SKU: MM-QKR1S003Categories: All MaxxMacro® Products, MaxxMacro, MaxxMacro® Chucks Manual, MaxxMacro® Chucks Manual and Pneumatic, MaxxMacro® Electrode Holders, MaxxMacro® MaxxMagnum® Performance WorkHolding, Sinker EDM Tooling Tags: 3R-600.23-S,3R-600.24-4RS,3R-602.27-1 3R-600.23-S,54,Chuck,Chucking,Manual,MaxxMacro,Milling,Mounting,MultiChuck,MX-600LV-R3,QuickChuck,Stainless,System 3R,System 3R Chuck,
Description

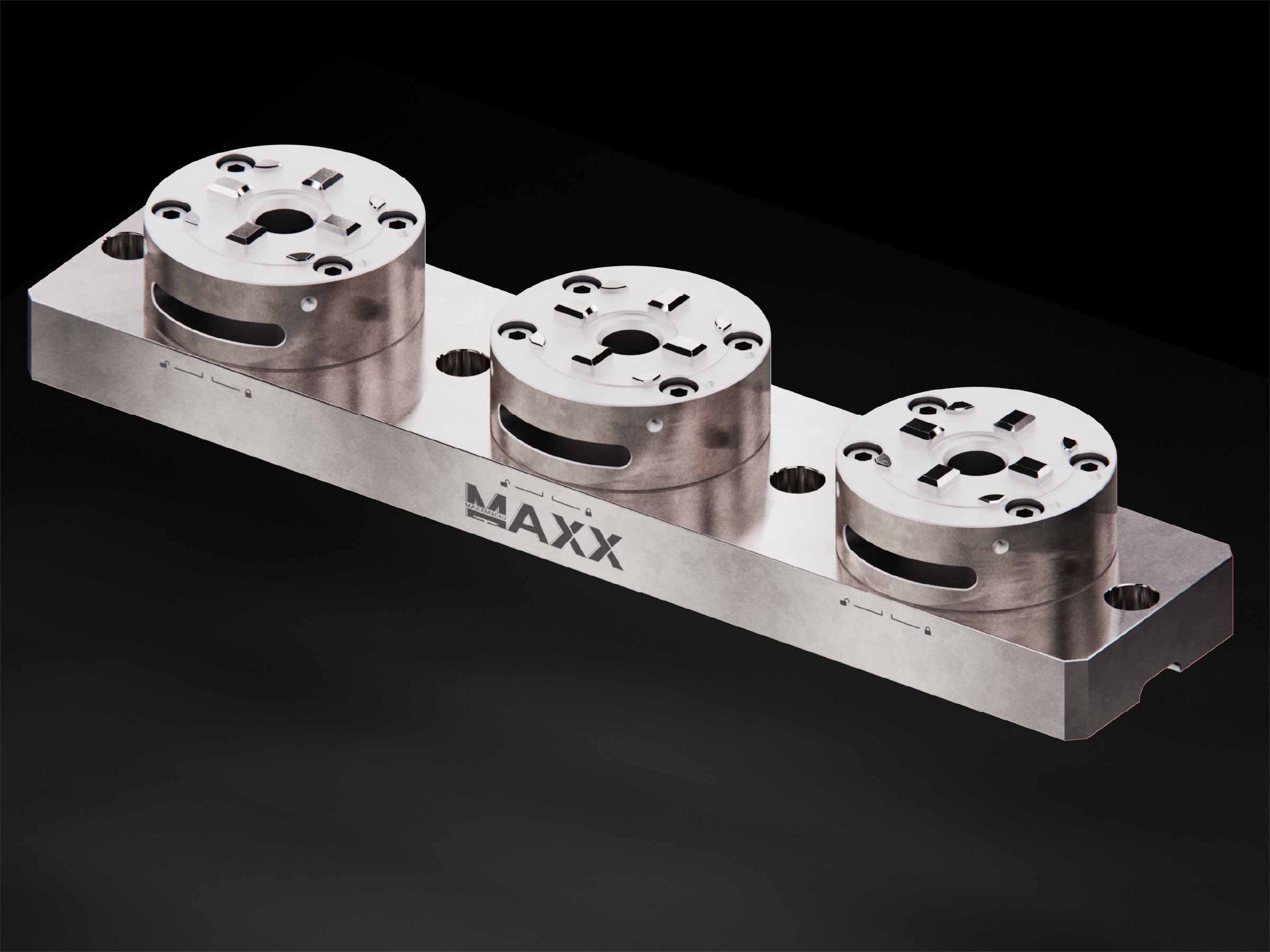

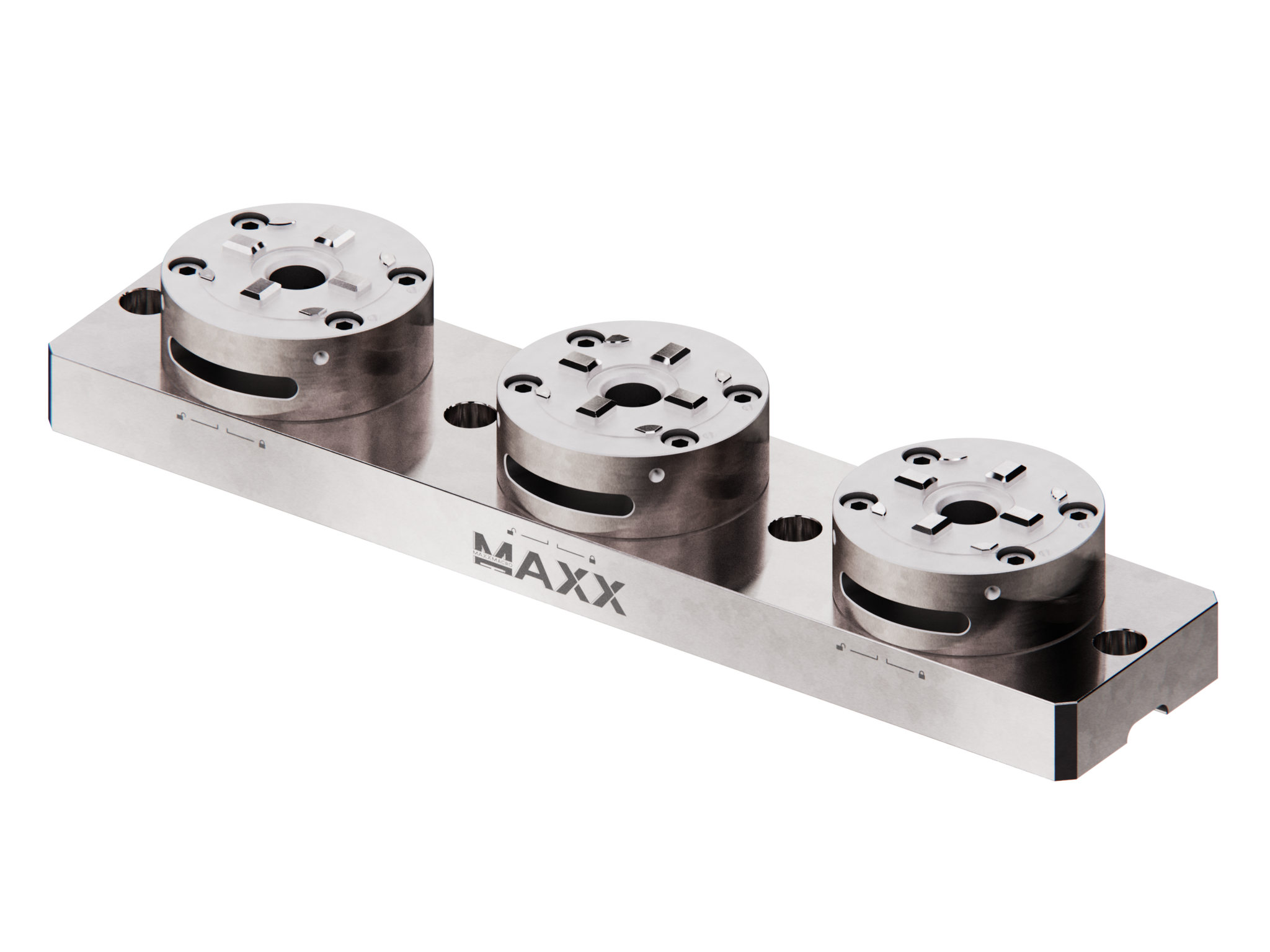

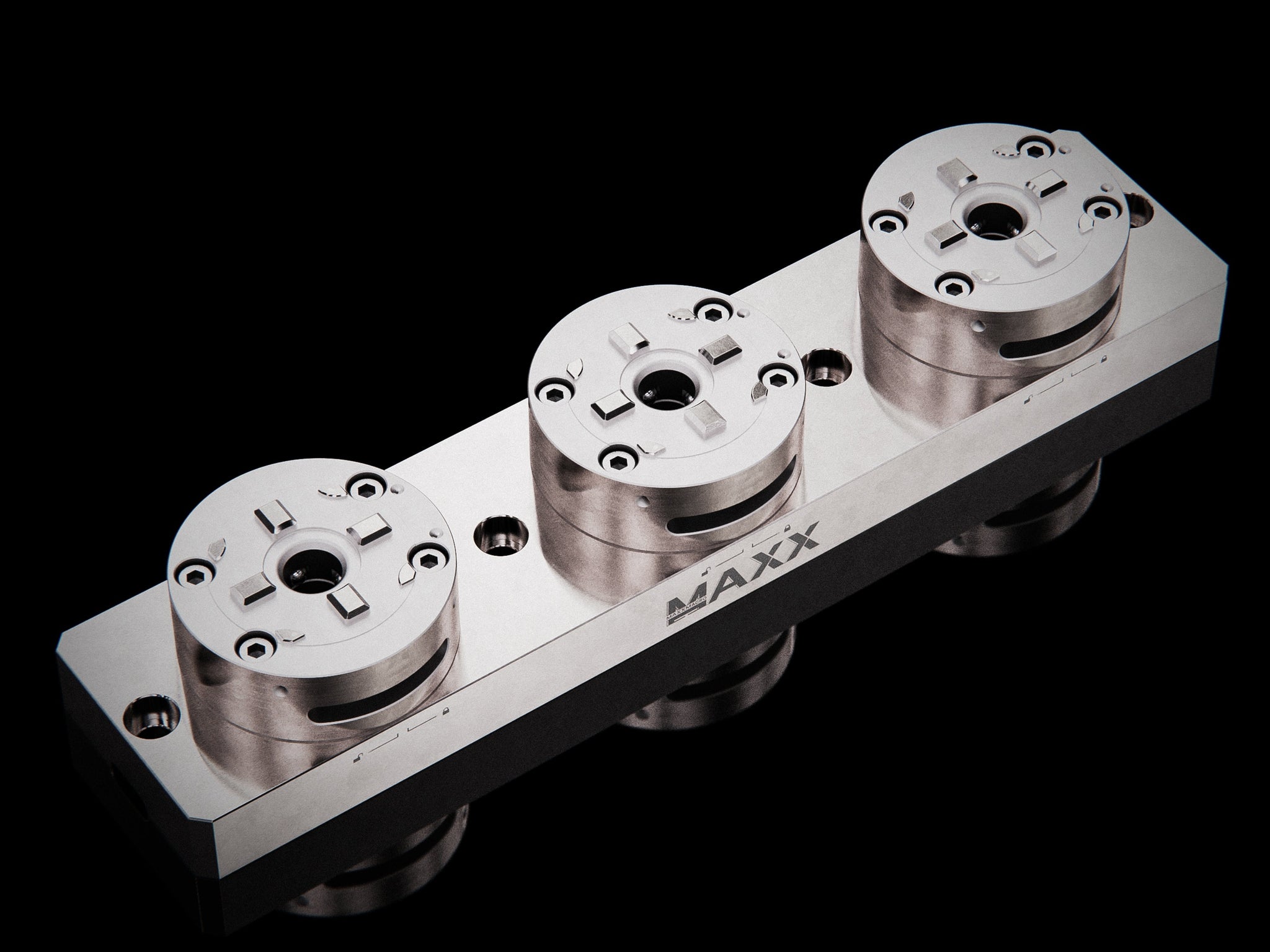

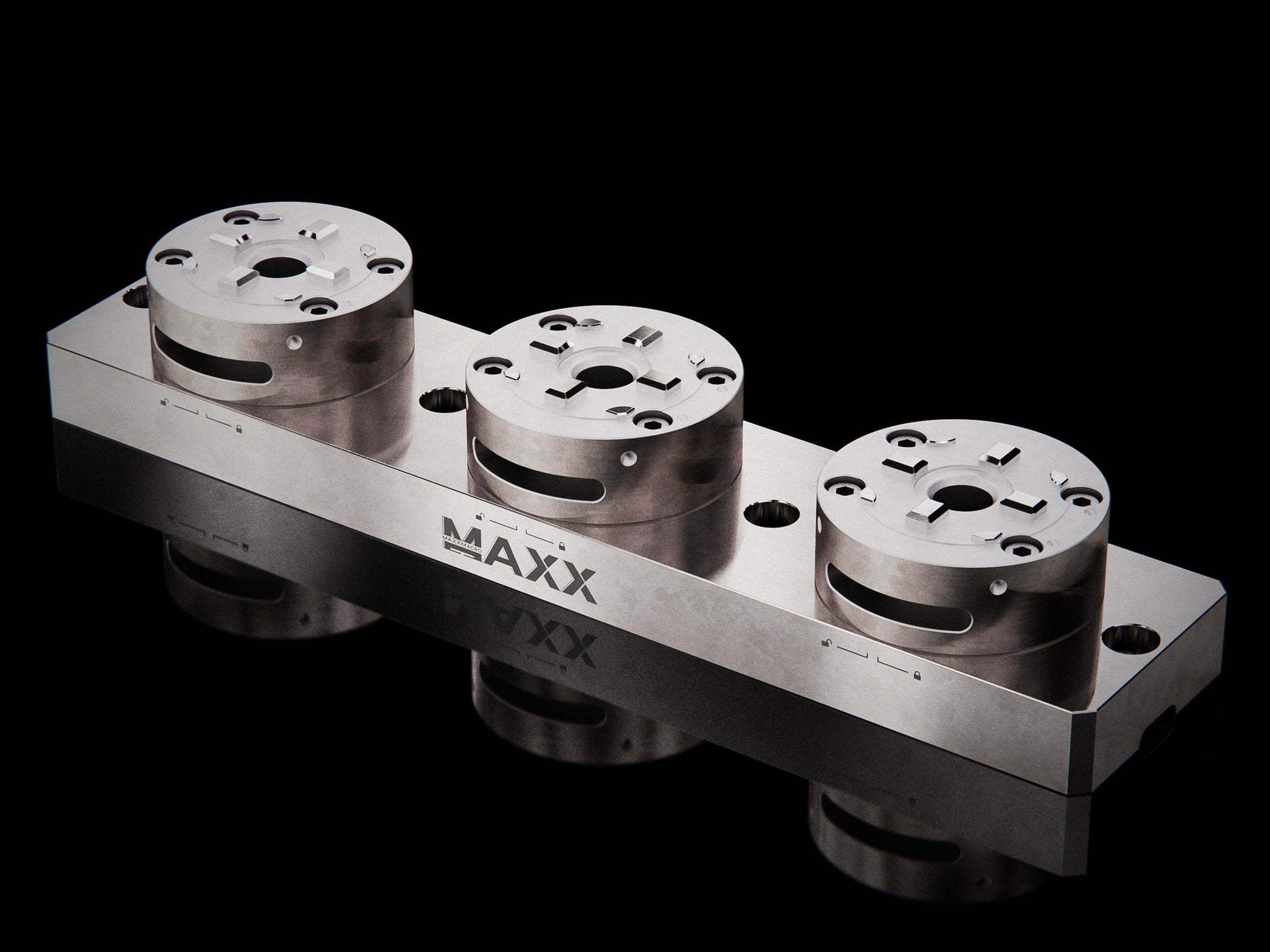

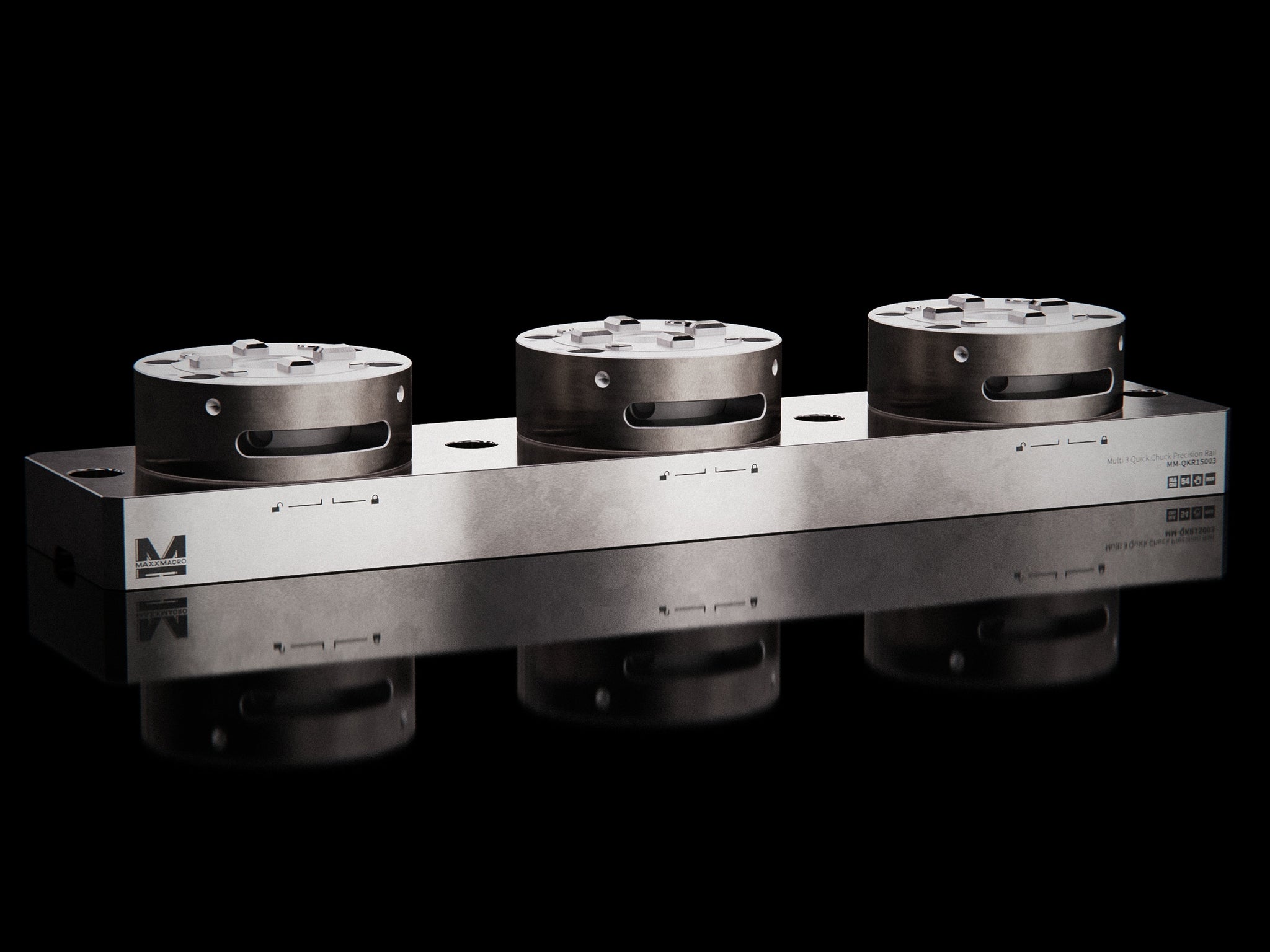

MaxxMacro 54 Multi 3 QuickChuck Chuck Precision Rail comes fully assembled and ready to use. This product is 100% cross-compatible with the System 3R Macro OEM system. Precision rail with multiple chucks for easier installation and a more space-saving setup.

MaxxDesign Exclusive Features:

  • Multi-Chuck Rail System allows simultaneous actuation.
  • 100% cross-compatible with MaxxMacro 54 and OEM System

Product Specifics

  • Clamping Type: QuickChuck
  • Clamping Force: 6 kN
  • Drawbar/Spigot required: MM-DRWBR101
  • Chuck Included: MM-QK54W000
  • Included Items: MX-ACMTX002
  • Repair/Maintenance Kit: MM-RKMCW001

Product Details

  Product Name MaxxMacro 54 Multi 3 QuickChuck Chuck Precision Rail
  SKU [Old SKU] MM-QKR1S003 [MX-600LV-R3]
  System MaxxMacro  (System 3R 100% Cross-Compatible)
  Cross-Compatible [3R-602.27-1 3R-600.23-S, 3R-600.24-4RS, ]
  System Repeatability 0.002mm
  Weight 18.36 kg | 40.48 lb
